Shop Vac Making Video

Important: I would like to keep the PDF documents and plans I produce free of charge. Please support me with your likes and comments.

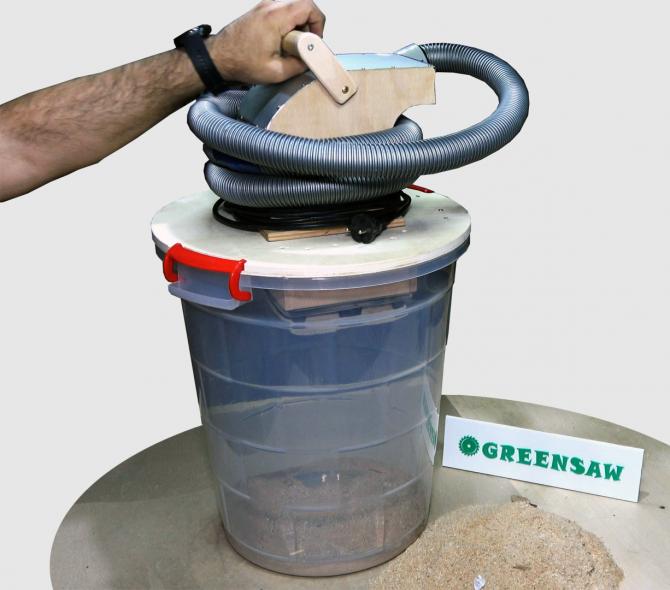

I wanted to make a vacuum cleaner for use in my workshop. First, I dissambled an old scrap vacum celaner in my hand and took its engine. Using this motor, I made the engine part in the PART 1 video. Then I made the main body using a clear plastic bucket. During these processes, I used 10 mm plywood as wood.

Bucket, motor, etc. I did not prepare dimensions-pdf, as the dimensions will not match yours. But if very desired, I can prepare a pdf file containing the dimensions of mine.

Making Video PART 1 :

Go to this video's Youtube page and make a comment.

Making Video PART 2:

Go to this video's Youtube page and make a comment.

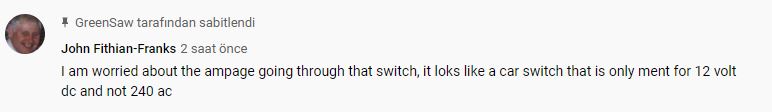

A comment from John Fithian-Franks :

I used a 250V 6 Amp switch. See picture below. I measured how many amps the motor needs. That motor needs a maximum of 3.5 amps.

Button Circle Cyclone Dust Motor Plywood
