Drill Guide making

Drill Guide making için görsel


Important: I would like to keep the PDF documents and plans I produce free of charge. Please support me with your likes and comments.


I'm making a drill guide a bit of plywood. Extremely handy tool for opening 90 degree holes. Also the cost is very low. After watching the video you can do according to your own drill guide.


Photos :

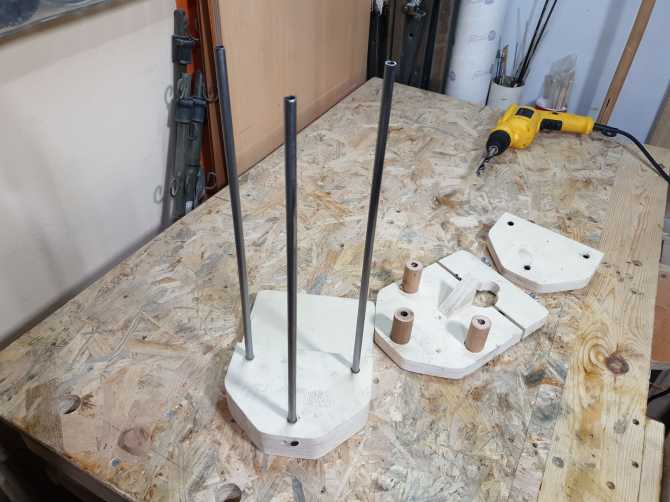

Img 20190409 203059.jpg

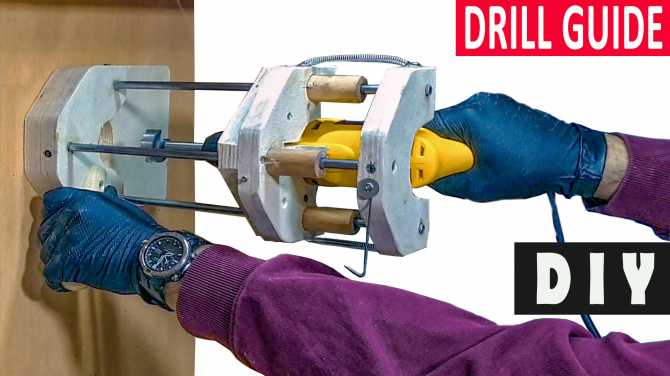

Drill Guide.jpg

Making Video :

Go to this video's Youtube page and make a comment.

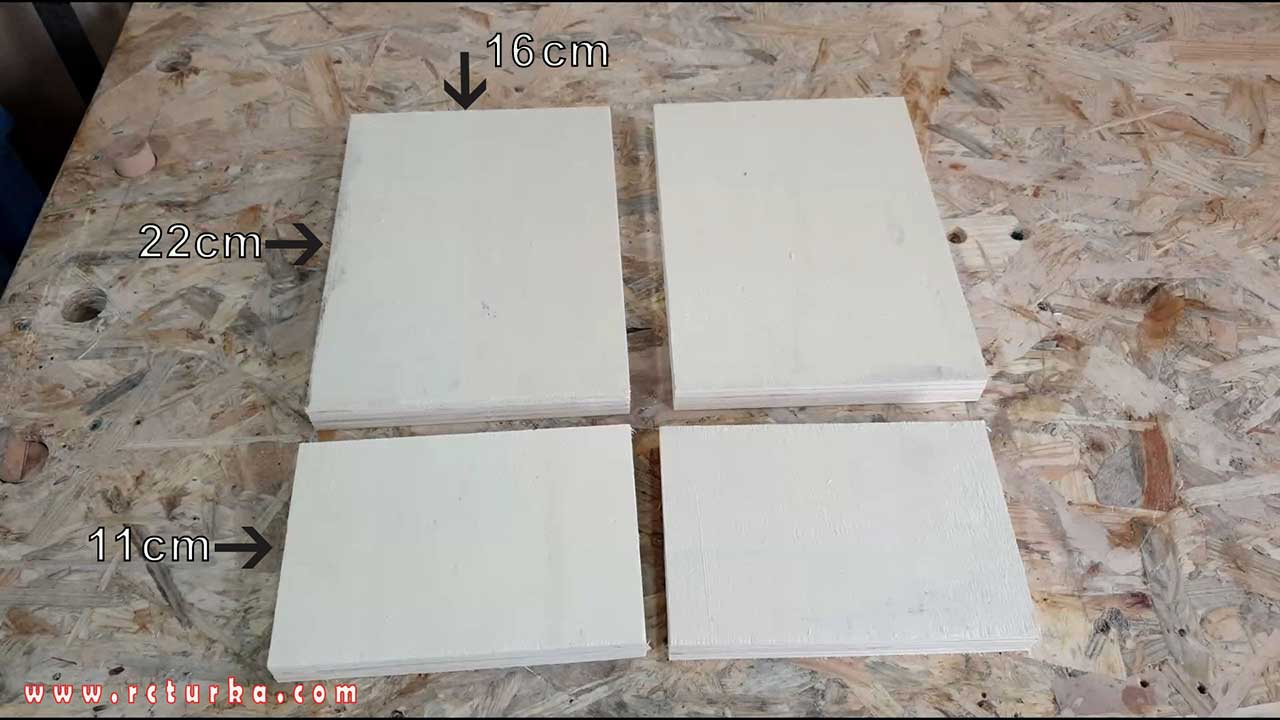

18mm plywood

Drill Guide1[1].jpg

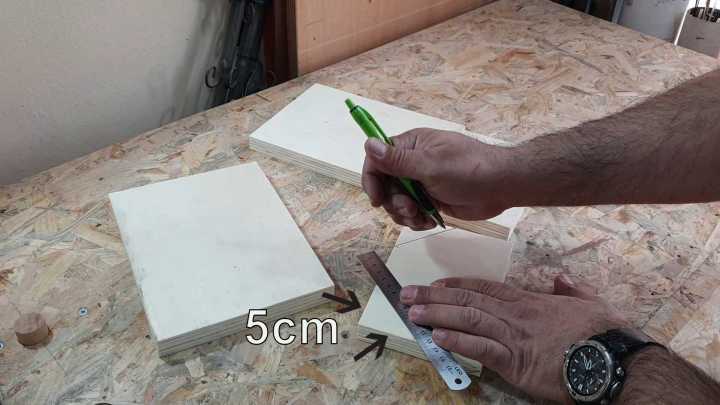

5cm marking - cutting

Drill Guide 2[1].jpg

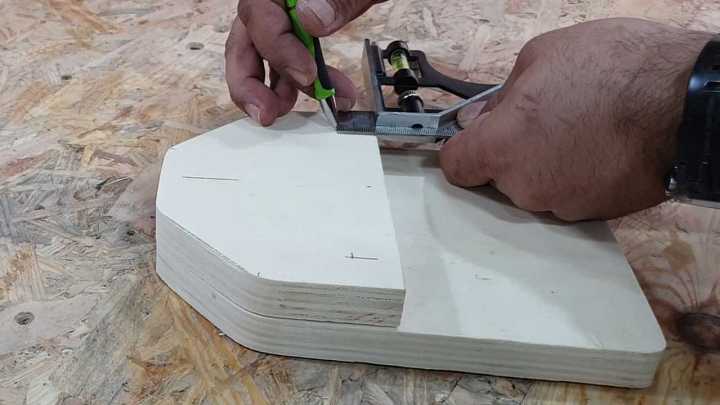

2cm marking

Drill Guide 3[1].jpg

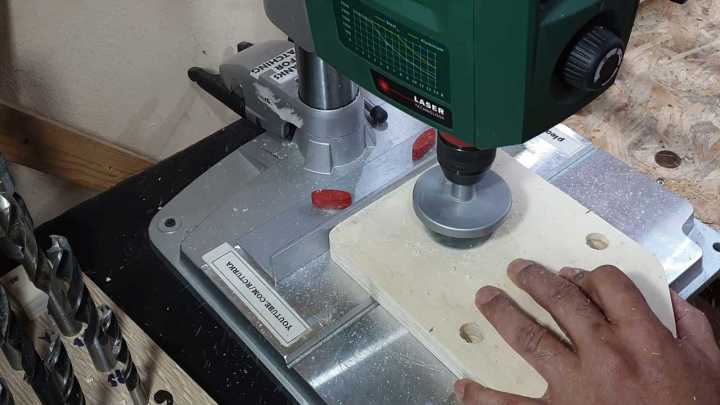

for my drill - 48mm hole saw - (Width to fit your drill)

Drill Guide 4[1].jpg

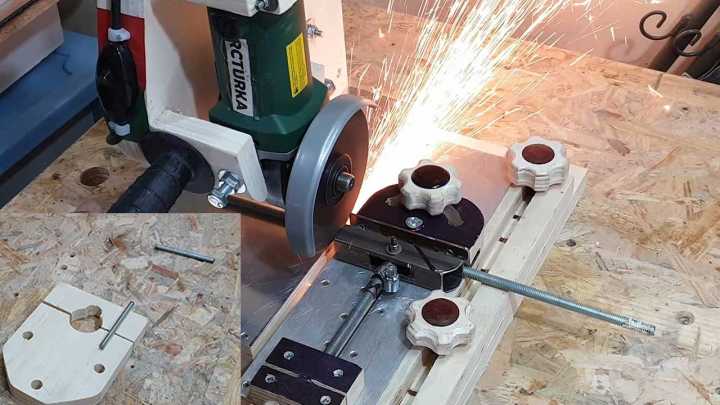

2x - 11cm cutting (M8)

Drill Guide 5[1].jpg

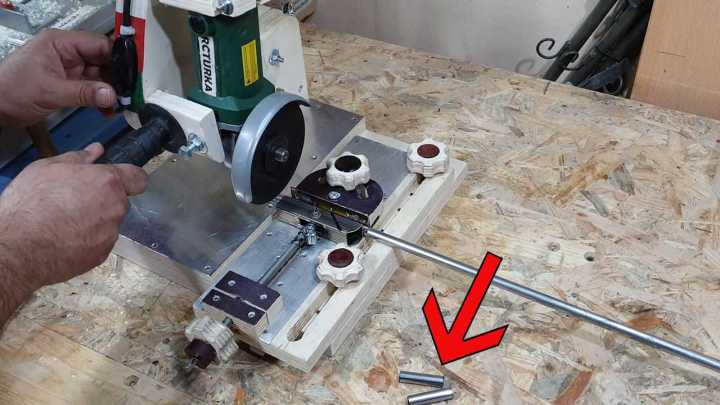

6X - 36mm cutting (Øin 8mm, Øout 10mm metal)

Drill Guide 6[1].jpg

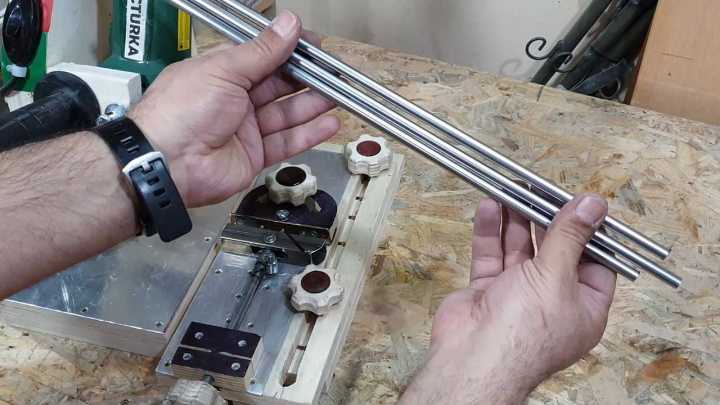

3x 34cm (Øout 8mm metal)

Drill Guide 7[1].jpg

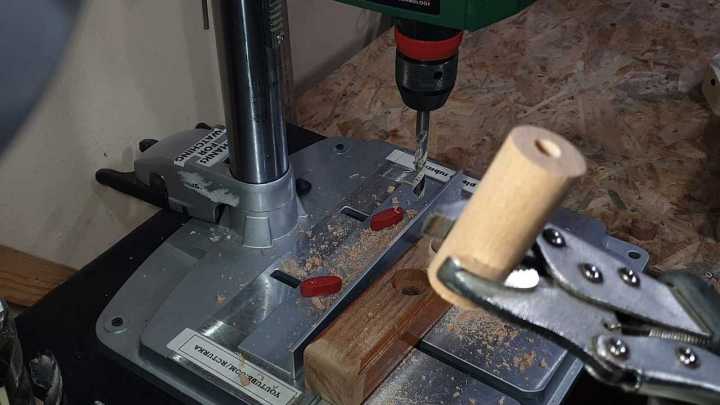

3X - 6cm hardwood Ø 25mm - Drilling 8,5mm

Drill Guide 8[1].jpg

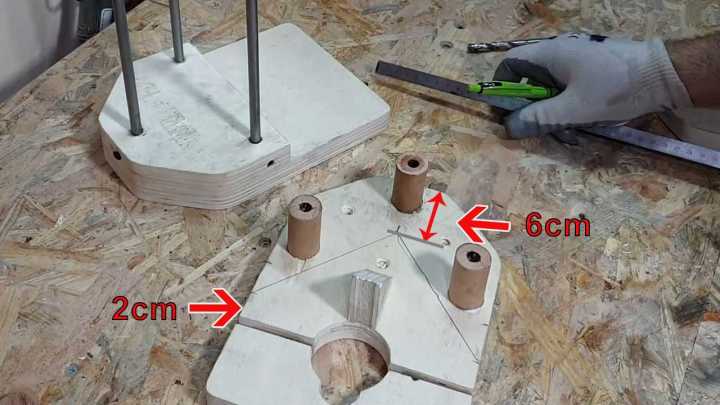

Drill Guide 9[1].jpg


54mm hole saw

Drill Guide 10[1].jpg
